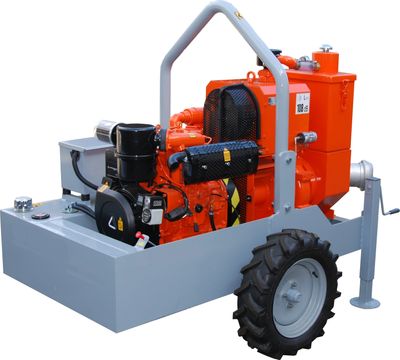

Centrifugal Dewatering Pumps
DWV 6" VACUUM ASSISTED
The unit is based on a centrifugal pump operating with a dry-chamber vacuum pump that creates sub-atmospheric pressure.
The pump and impeller design resists clogging and allows pumping of various media (slurry, wastewater, excavation dewatering). The air separator is made of stainless steel for durability.
Technical specifications
· Water pump capacity: up to 1,630 GPM
· Vacuum pump capacity: up to 264 CFM
· Max discharge head: up to 79 ft
· Inlet/Outlet: 6 in
· Impeller diameter: 1.77 in
· Overall dimensions (L × W × H): 67.0 × 53.1 × 51.2 in
· Weight: 1,720 lb
· Engine: Lombardini 9LD 625/2 (diesel)
· Power: 16.1 HP @ 1,800 RPM
· Fuel tank: approx. 26.4 US gal
· Fuel consumption: 0.34–0.79 US gal/hr
Motor pump 6''
The pump is designed for pumping clean and dirty water, water with sand and gravel, slurry, emergency pumping.
Technical specifications
· Water pump capacity: up to 1,630 GPM
· Vacuum pump capacity: up to 264 CFM
· Max discharge head: up to 79 ft
· Inlet/Outlet: 6 in
· Impeller diameter: 1.77 in
· Overall dimensions (L × W × H): 67.0 × 53.1 × 51.2 in
· Weight: 1,720 lb
· Engine: Lombardini 9LD 625/2 (diesel)
· Power: 16.1 HP @ 1,800 RPM
· Fuel tank: approx. 26.4 US gal
· Fuel consumption: 0.34–0.79 US gal/hr
